Direct Forming Tube Mill Line 530×13

HG530 Tube Mill | High-Efficiency API & Structural Pipe Making Machine



Our HG530 tube mill machine is a professional industrial pipe forming equipment specially designed for mass production of high-standard API tubes and heavy-duty structural tubes. Adopting advanced direct forming technology, this premium tube mill supports flexible production of round pipes, square pipes and rectangular pipes to cover diversified pipe manufacturing demands for global pipeline, construction and engineering industries.



Equipped with our exclusive core roller adjustment technology, this HG530 pipe mill realizes precise adjustment of roller spacing and roller position, which perfectly satisfies customized forming standards for pipes with different specifications, wall thicknesses and shapes. The open profile forming section supports 100% full roller sharing, meaning one complete set of rollers can match all available pipe sizes. This innovative design greatly cuts down your mold replacement cost, shortens production downtime and improves overall pipe production efficiency.



As a reliable professional manufacturer of full-automatic tube welding lines, MaxMach provides more than just standard pipe making machines - we deliver customized one-stop tube mill production solutions for global clients. To fully comply with strict API pipe manufacturing standards and quality inspection requirements, our HG530 tube mill is integrated with a complete set of supporting auxiliary processing and testing equipment.

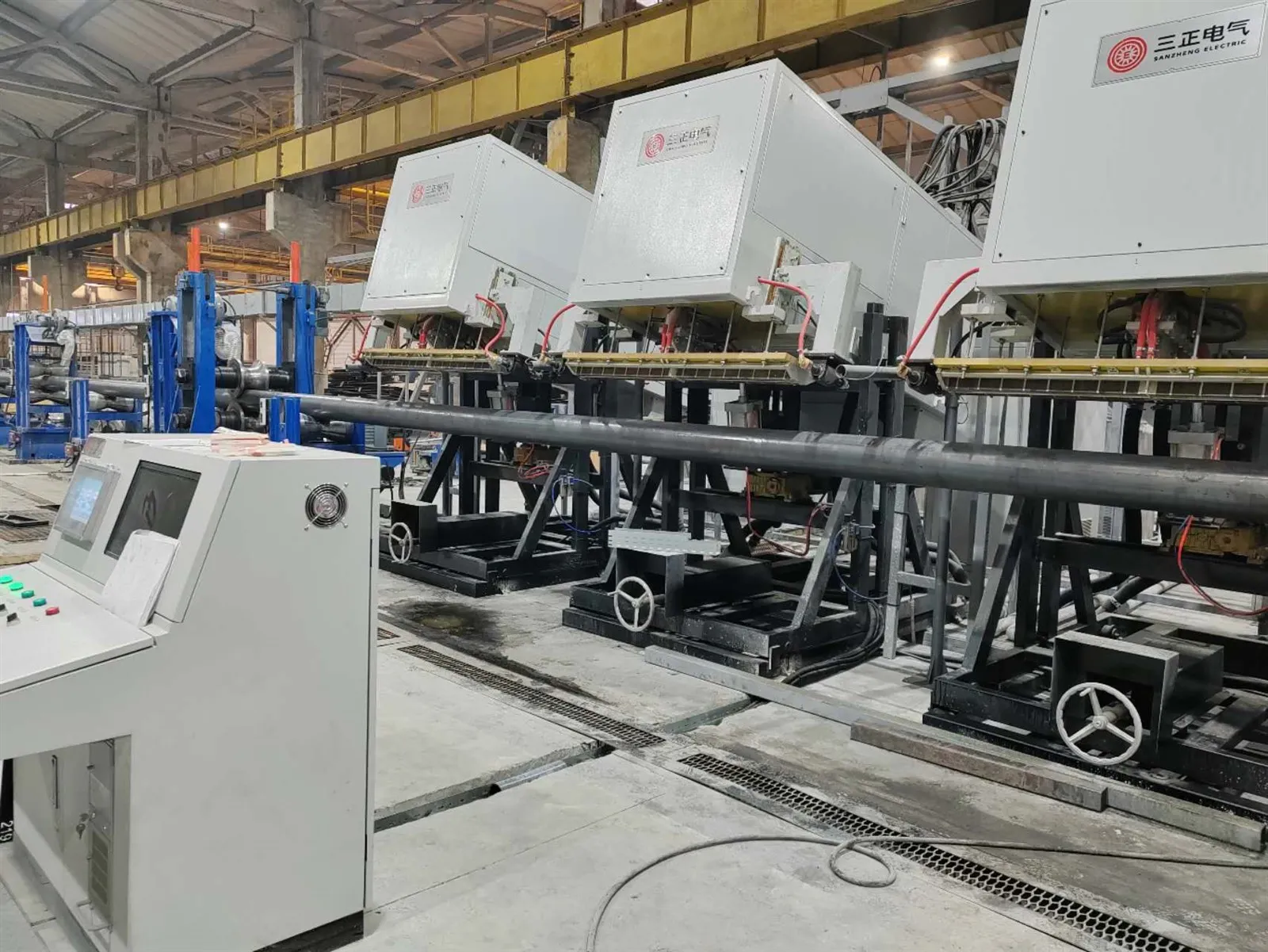

The full supporting configuration includes offline straightening machine, ultrasonic flaw detector, intermediate frequency annealing device, hydrostatic testing machine, as well as automatic pipe stacking and packaging system. All matched auxiliary devices ensure full-process quality control for finished pipes, guaranteeing all produced API tubes and structural pipes meet international industry quality certifications.



Model: HG530X13



Main parameter of the tube line:

The Pipe production line is used to manufacture weld steel round pipes, square and rectangular tubes of various sizes of Ø219- Ø530 with 4-13 mm of wall thickness (round pipe), 170×170 до 400×400 mm with 4-13 mm of wall thickness (square pipe) and 260×130 до 400×200 mm with 4-13 mm of wall thickness (rectangular pipe) made of rolled steel strip, welded with a straight seam using high-frequency induction welding.

The principle of operation is based on welding the edges of the seam of the pipe billet, when heated in a magnetic field, followed by compression of the edges in automatic mode with continuous movement of the pipe billet along the line.

- Length of Tube: 12m;

- Raw Material: yield strength≤550MPa;tensile strength≤700MPa;

- Raw material: Cold or hot rolled

- Length Tolerance: ≤±2mm

- Forming Speed: 10-35m/min;

- Tube mill running speed: 10-35m/min;

- inner diameter: Min. Ø610, Max.Ø760 mm (With decoiller sleeve);

- outer diameter: Ø1600-2000 mm;

- strip steel width: 650-1660mm;

- strip steel thickness: 4-13mm (Q355) & 4-11 mm (X70);

- the maximal weight: ≤35 ton;

- Forming Speed: 10-35m/min;

- Gear oil: medium load industrial gear oil N460

- Hydraulic oil: L-HM46 anti-wear hydraulic oil

- Grease: calcium base grease No. 2

- Cooling liquid: Emulsion

-Cooling pressure: 0.3～0.5MPa

- Cooling temperature： ≤35℃

- Compressed Air Pressure: 0.5 ~ 0.8MPa

- Compressed Air Flow: 6nm3 / min

- Gas shielded welding power supply: 100kW

- Gas shielded welding rated power: 80kW



Technical requirement in plant

Power: AC380V (±10%) 50 HZ

Control power: AC110V 50 HZ

Feed in direction: according to customer' requirement

Power capacity: about 5500 kw

Total length of the mill: 510m



Working Flow:



Coil loading → uncoiling → shovel head → pinching&leveling → Automatic shearing and butt-welding→ accumulating → Centering → Trimming → Scrap crushing →Strip ultrasonic flaw detection → Guiding (including 5 roll leveling) → Feeding → forming → HF welding → deburring (outside an inner ) → Weld seam grinding → ultrasonic flaw detection → intermediate frequency annealing → air cooling →water cooling → sizing and straightening → cut to length → run out table → round pipe straightening → end facing → hydro testing → manual checking and repairing → tube weighing, measuring, printing, marking → automatic stacking and packing (including weighting and tube package marking) → storage



№	Description of goods	Quantity	Unit
1	Double-cone Uncoiler with coil car	1	set
2	Shovel head, pinching&feeding device	1	set
3	8-roll Leveller machine	1	set
4	Automatic Shearing & But-welding device	1	set
5	Horizontal Spiral Accumulator	1	set
6	Centering device	1	set
7	Trimming machine (disc shear)	1	set
8	Scrap crusher	1	set
9	Ultrasonic Testing Machine for Steel Strip 带钢超声波试验机	1	set
10	Forming section
11	Welding section
12	Sizing sections
13	Milling Flying Cutting Saw	1	set
14	Band Saw	1	set
15	Flattening device	1	set
16	Straightening machine for round tube	1	set
17	Straightening machine for square/ rectangular	1	set
18	Automatic End Facing Machine	1	set
19	Hydrostatic Testing Machine	1	set
20	Length measuring, weighing and marking equipment	1	set
21	Automatic Stacking & Packing Machine with weighting and marking machine	1	set
23	Hydraulic system
24	Rollers		Ton
